JIS G3106 High Strength SM490A Channel Steel Impact Testing Temperature

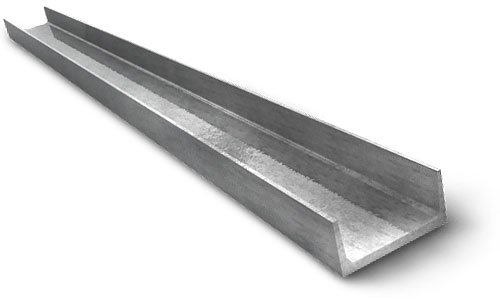

SM490A is under steel standard JIS G3106.For the steel plate thickness equal or below 16mm, the minimum yield strength for steel plate SM490A shall be above 325Mpa, for the thickness between 16mm and 40mm. SM490A Channel Steel are used in Construction of Bridges, Highway Construction and Other Engineering construction

SM490A Chemical composition (%, Max)

C : 0.20 t≤50
C : 0.22 50＜t ≤200
Si : 0.55
Mn: 1.60
P: 0.035
S : 0.035

Mechanical property for SM490A steel:

Thickness (mm)
SM490A	≤ 16	> 16 ≤ 40	> 40 ≤ 75	> 75 ≤ 100	> 100 ≤ 160	> 160
Yield strength (≥Mpa)	325	315	295	295	285	275
	≤ 100					> 100
Tensile strength (Mpa)	490-610					400-610

Technical Requirements Additional Services of SM490A Channel Steel:

1,Chemical Analysis
2, Low temperature impacting test
3, Ultrasonic test under EN 10160,ASTM A435,A577,A578
4, Issued Original Mill test certificate under EN 10204 FORMAT 3.1/3.2
5, Shot blasting and Painting, Cutting and welding as per end user’s demands

Other Terms of SM490A:

◆Packaging Details: Standard export seaworthy packing or as required.
◆Delivery Time:20-30 days, 7 days for stock goods.
◆Loading Port: Shanghai, Tianjin
◆Offer Ability:6000MT/Per Month.
◆MOQ:1 Pcs.

Shanghai Katalor Enterprises Co., Ltd is a big complex combined steel stockist whose business related with trade, processing, storage and transportation. we are specialized in supplying JIS G3106 High Strength SM490A Channel Steel. We have the good quality and advanced equipment, our products meet the state standard, and also available for customers' requirement. If you have any need of SM490A, please do not hesitate to contact us by email [email protected], we can do our best to help you!
