High Strength CCS GRADE DH32 Angle Steel Heat Analysis

CCS GRADE DH32 has the high yield strength and tensile strength. GRADE DH32 angle steel is mainly used to build and repair ship and vessels and other steel structures, and also used in industrial maintenance, agricultural implements, transportation equipment, etc.

Mechanical property for CCS Grade DH32 shipbuilding structural steel:

Yield strength (≥Mpa)	Tensile strength (Mpa)	Elongation in ≥,%
315	440-590	200mm	50mm
		19	22

Chemical composition for CCS Grade DH32 ship steel (Heat Analysis Max %)

Main chemical elements composition of CCS Grade DH32
C	Si	Mn	P	S	Al (acid) min.	Nb
0.18	0.10-0.50	0.90-1.60	0.035	0.035	0.015	0.02-0.05
V	Ti	Cu	Cr	Ni	Mo
0.05-0.10	0.02	0.35	0.20	0.40	0.08

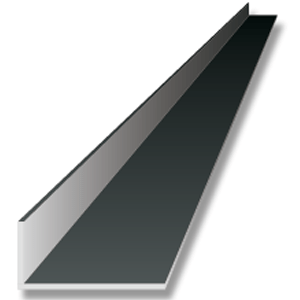

CCS GRADE DH32 angle steel Specification

Steel Standard: ASTM,JIS G3192,ABS,LR,GL,BV,KR,DNV,NK,RINA,CCS
Length: 5000mm-13000mm
Equal-leg angles: 75*75*6mm-250*250*35mm
Unequal-leg angles: 100*75*7mm-200*100*16mm
Inverted angles: 200*90*9*14mm-450*125*11.5*18mm
We can supply any size based on customer's requirements
Surface Treatment: Hot rolled or Shot blasting and painting
Supply Ability: 50000 Tons per month
Additional service: Shot blasting and painting, Cutting and welding as per user’s request.

Technical Requirements Additional Services of GRADE DH32 angle steel:

1,High tension test
2,Z-Test (Z15,Z25,Z35)
3, Low temperature impacting test
4, Ultrasonic test under ASTM A435,A577,A578
5, Certificated by ABS,LR,GL,BV,DNV,KR,NK,CCS,RINA
6, Issued Original Mill test certificate under EN 10204 FORMAT 3.1/3.2
7,Shot blasting and Painting, Cutting and welding as per end user’s demands

Shanghai Katalor Enterprises Co., Ltd is a big complex combined steel stockist whose business related with trade, processing, storage and transportation. we are specialized in supplying CCS GRADE DH32 angle steel. We have the good quality and advanced equipment, our products meet the state standard, and also available for customers' requirement. If you have any need of CCS GRADE DH32, please do not hesitate to contact us by email [email protected], we can do our best to help you!
