High Quality EN 10025-2 S235J0 Carbon I Beam Size Range

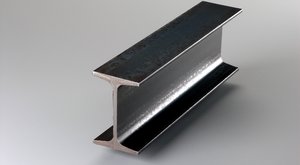

S235J0 I beam is a steel beam with an I- or H-shaped cross-section. S235J0 Carbon I beam is divided into three categories as ordinary beam, light beam and H beam. EN 10025-2 S235J0 I-beams are usually made of structural steel and are used in construction and civil engineering.

Mechanical property for S235J0 carbon I Beam:

Thickness (mm)
S235J0	≤ 16	> 16 ≤ 40	> 40 ≤ 63	> 63 ≤ 80	> 80 ≤ 100	> 100 ≤ 150	> 150 ≤ 200	> 200 ≤ 250	> 250
Yield strength (≥Mpa)	235	225	215	215	215	195	185	175	175
	< 3	≥ 3 ≤ 100				> 100 ≤ 150	> 150 ≤ 250		> 250
Tensile strength (Mpa)	360-510	360-510				350-500	340-490		340-490

Chemical composition for S235J0 steel (Ladle Analysis Max%)

Main chemical elements composition of S235J0
Thickness(mm)	C	Si	Mn	P	S	N	Cu
T≤16	0.17	...	1.40	0.030	0.030	0.012	0.55
16<T≤40	0.17
40<T	0.17

Technical Requirements & Additional Services:

First, Ultrasonic test under EN 10160,ASTM A435,A577,A578
Second, Issued Original Mill test certificate under EN 10204 FORMAT 3.1/3.2
Third, Shot blasting and Painting, Cutting and welding as per end user’s demands

S235J0 Carbon I Beam application can be offered by KATALOR in China. We keep many EN 10025-2 S235J0 Carbon I Beam stock in our warehouse, With high precision, strictly inspection and excellent performance, we not only have ability to offer High Quality EN 10025-2 S235J0products, but also can provide supreme after sale service about S235J0 Carbon I Beam. So hereby, we sincerely hope you join us, let's join hands to make you be the No.1 in your local steel market.
