You are here : section steel--Katalor steel > News > 正文EN1025-2 S355JR I Beam Equivalent Indian Standard

EN1025-2 S355JR I Beam Equivalent Indian Standard

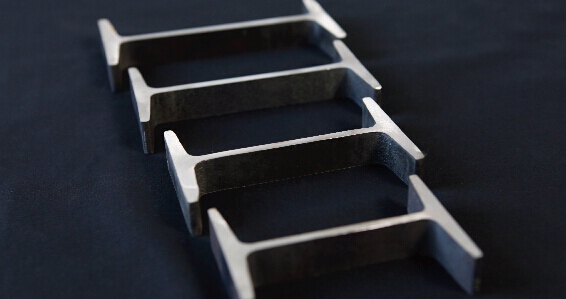

S355JR I Beam is a low carbon, high tensile strength structural steel which can be readily welded to other weld able steel, EN10025-2 S355JR is produced by fully killed steel process and supplied in normalized or controlled rolling condition.

Chemicalcomposition % of the ladle analysis of grade S355JR

Nominalthickness=<30(mm)CEVmax=0.45
C	Si	Mn	P	S	N	Cu	CEV
max0.24	max0.55	max1.6	max0.04	max0.04	max 0.012	max0.55	max0.47

Mechanical properties of grade S355JR

Nominalthickness(mm)	to16	16-40	40-63	63-80	80-100	100-125
ReH-Minimumyieldstrength(MPa)	355	345	335	325	315	295

Temperature	-20	0	20
Notchimpacttest.Min.absorbedenergy	27	27	27

S355JR I Beam Additional Condition

UT(Ultrasonic examination),AR(As Hot Rolled only),TMCP(Thermal Mechanical Control Processing), N(Normalized), Q+T(Quenched and Tempered),Z Direction Test(Z15,Z25,Z35),Charpy V-Notch Impact Test, The Third Party Test(such as SGS Test),Coated or Shot Blasting and Painting.

Other Terms of EN1025-2 S355JR I Beam

◆Packaging Details: Standard export seaworthy packing or as required.
◆Delivery Time: 20-30 days, 5-7 days for stock goods.
◆Loading Port: Shanghai
◆Offer Ability: 6 000MT/Per Month.

Our Advantage:

First, Best Quality-Steelplate from China First-Class mill with Die stamp include heat number and batch number, it can be tracked.
Second, Fast Delivery-Good relationship with Mill and Forwarder Shipping Agent for producing and shipping.
Third, Professional Team-Work steel business more than six years for export steel plate.
Fourth, Reasonable Price-Cooperate with 15 mills, satisfied with different request for the price and quality.
Fifth, Kinds of Payment-T/T, L/C at sight, Usance Letter of Credit.

Our company is located in Pu dong district of Shanghai city. It is only 30 minutes from Pu dong International airport to our company. If you have chance to China, we sincerely invite you to visit us. We will pick you up at the airport if you tell us your schedule. We can take you to visit our steel mill and warehouse. If you have any need of EN1025-2 S355JR I Beam, please do not hesitate to contact us by email [email protected], Hope to build the long term good cooperation with your esteemed company!
