You are here : section steel--Katalor steel > News > 正文EN 10025-2 S235J0 low carbon high strength structural Ball flat

EN 10025-2 S235J0 low carbon high strength structural Ball flat

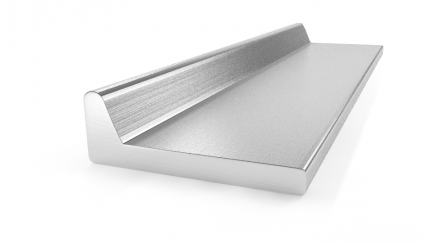

S235J0 Bulb flats

S235J0 Bulb flats are mainly used in shipbuilding and bridge-building in the field of profiles, where Marine ball flat steel in shipbuilding auxiliary profiles. In recent years, with the rapid development of shipbuilding industry , strong Marine ball flat steel demand . Generally larger vessels and formal design of the main hull ship most use Marine ball flat steel plate attached to the use of the same thickness and material of bulb flats for aggregate

S235J0 Physical properties:

Grade	Thickness (mm)	Min Yield (Mpa)	Tensile (Mpa)	Elongation (%)	Min Impact Energy
S235J0	8mm-100mm	215Mpa-235Mpa	360-510Mpa	24-26%	0	27J
	101mm-200mm	185-195Mpa	350-490Mpa	22%	0	27J
	201mm-400mm	-	-	21%	0	27J
The min impact energy is longitudinal energy

S235J0 Chemical composition:

C	Mn	P	S	N	Cu	CEV
max 0.17	max 1.4	max 0.035	max 0.035	max 0.012	max 0.55	max 0.38

The ball is a special steel flat by flat webs and spherical ball configuration, asymmetrical beam. Ball flat steel mainly used in shipbuilding and bridge-building , but in recent years with the rapid development of shipbuilding industry , marine ball ball flat steel gradually become flat spot that is the most important marine steel one , primarily as a Ship stiffener use , the equivalent of human " ribs ."

S235J0 Meaning:
S... - Structural steel
E... - Engineering steel;
.235... - Minimum yield strength (ReH) in MPa at 16mm;
...JR.. - Longitudinal Charpy V-notch impacts 27 J at + 20°C;
...J0.. - Longitudinal Charpy V-notch impacts 27 J at 0°C;
...J2.. - Longitudinal Charpy V-notch impacts 27 J at - 20°C;

Katalor is specialized in exporting S235J0 Ball flat steel . We have ten years experience in supplying S235J0 Ball flat steel . Besides that, We have powerful relationship with our mill, so we could promise you the short delivery time and the competitive price comparing with any other company.
