You are here : section steel--Katalor steel > News > 正文CCS GRADE AH32 Angle Steel Extra High Strength

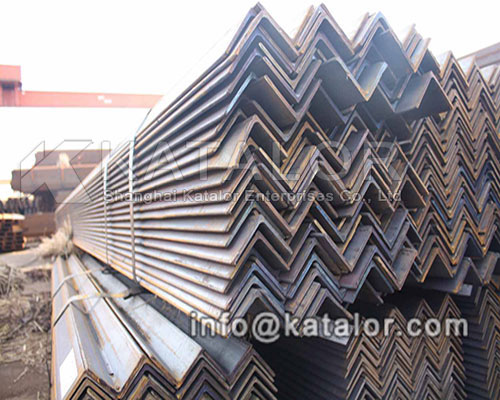

CCS GRADE AH32 Angle Steel Extra High Strength

CCS GRADE AH32 has higher steel strength at minimum yield strength 315 Mpa and with minimum tensile strength 440 Mpa. GRADE AH32 Angle steels are used to build ship and vessels and other steel structures

Mechanical property for CCS Grade AH32 Angle Steel:

Yield strength (≥Mpa)	Tensile strength (Mpa)	Elongation in ≥,%
315	440-590	200mm	50mm
		19	22

Chemical composition for CCS Grade AH32 Angle steel (Heat Analysis Max %)

Main chemical elements composition of CCS Grade AH32
C	Si	Mn	P	S	Al (acid) min.	Nb
0.18	0.10-0.50	0.90-1.60	0.035	0.035	0.015	0.02-0.05
V	Ti	Cu	Cr	Ni	Mo
0.05-0.10	0.02	0.35	0.20	0.40	0.08

CCS GRADE AH32 Technical Requirements Additional Services:

1, High tension test
2, Z-Test (Z15, Z25, Z35)
3, Low temperature impacting test
4, Ultrasonic test under ASTM A435, A577, A578
5, Certificated by ABS, LR, GL, BV, DNV, KR, NK, CCS, RINA
6, Issued Original Mill test certificate under EN 10204 FORMAT 3.1/3.2
7, blasting and Painting, Cutting and welding as per end user’s demands

GRADE AH32 Angle Steel Specification

Steel standard: JIS G3192, GB 9788-88
Rolling range: Equal-leg angles 75*75*6mm-250*250*35mm, Unequal-leg angles 100*75*7mm-200*100*16mm, unequal leg and unequal thickness angles 200*90*9*14mm-450*125*11.5*18mm.
Surface Treatment: Hot rolled or Shot blasting and painting
Supply Ability: 60000 Tons per month
Additional service: Shot blasting and painting, Cutting and welding as per user’s request.

Our company is located in Pudong district of Shanghai city. It is only 30 minutes from Pudong International airport to our company. If you have chance to China, we sincerely invite you to visit us. We will pick you up at the airport if you tell us your schedule. We can take you to visit our steel mill and warehouse. Hope to build the long term good cooperation with your esteemed company! If you have any need of CCS GRADE AH32 Angle Steel, please feel free to contact us by email [email protected].
