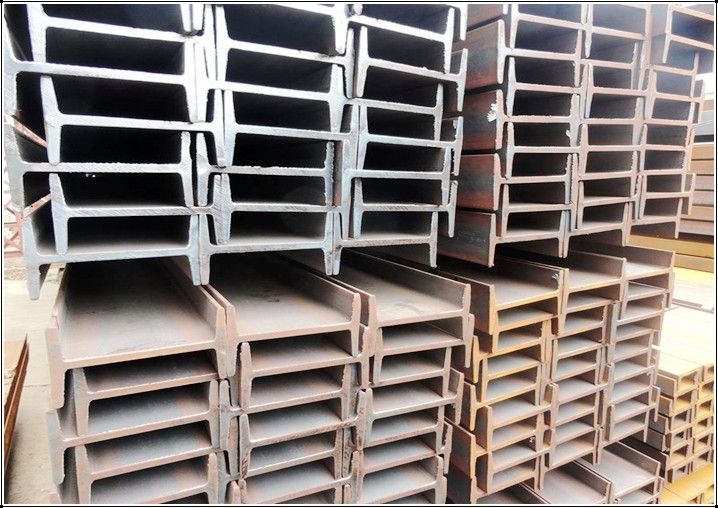

ASTM A992 I-beam steel

ASTM A992 steel is a structural steel alloy often used in the USA for steel wide-flange and I beams. Like other carbon steels, the density of ASTM A992 steel is approximately 7850 kg/m3 (0.2836 lb/in3). ASTM A992 steel has the following minimum mechanical properties, according to ASTM specification A992/A992M. Tensile yield strength, 345 MPa (50 ksi); tensile ultimate strength, 450 MPa (65 ksi); strain to rupture (sometimes called elongation) in a 200-mm-long test specimen, 18%; strain to rupture in a 50-mm-long test specimen, 21%.

ASTM A992 is currently the most available steel type for structural wide-flange beams. The industry's technical institute describes the standard thus: "ASTM A992 (Fy = 50 ksi, Fu = 65 ksi) is the preferred material specification for wide-flange shapes, having replaced ASTM A36 and A572 grade 50. There are a couple of noteworthy enhancements with ASTM A992. Material ductility is well defined since a maximum yield-to-tensile strength ratio of 0.85 is specified. Additionally, weldability is improved since a maximum carbon equivalent value of 0.45 (0.47 for Group 4 and 5 shapes) is required. ASTM A992 is written to cover all hot-rolled shapes.

Because the cross-sectional dimensions are relatively high and narrow, the moment of inertia of the two main sleeves of the section is quite different, which makes A992 I-beam have a great limitation in the application range of ordinary I-beam and light-I-beam.A992 I-beam use should be based on the requirements of the design drawings used.
