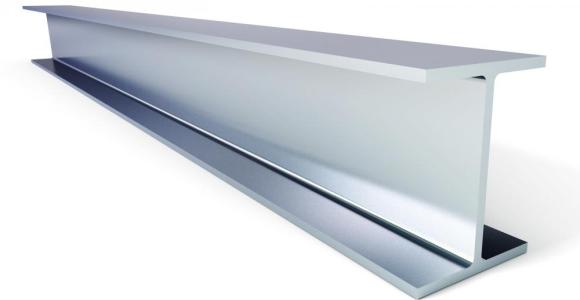

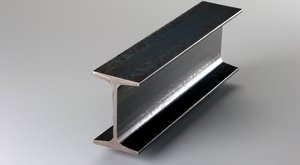

ASTM A36 I/H beam application

ASTM A36 I/H beam applicationASTM A36 I/H beam application



ASTM A36 I/H beam is an intermediate tensile strength carbon steel that is easy to form, machine and weld. Its strength and low cost make it an ideal material for structural steel beams.



A36 I/H beam Chemical Composition


Element

Content

Carbon, C

0.25 - 0.290 %

Copper, Cu

0.20 %

Iron, Fe

98.0 %

Manganese, Mn

1.03 %

Phosphorous, P

 0.040 %

Silicon, Si

0.280 %

Sulfur, S

 0.050 %



A36 I/H beam Mechanical Properties

Mechanical Properties

Metric

Imperial

Tensile Strength, Ultimate

400 - 550 MPa

58000 - 79800 psi

Tensile Strength, Yield

250 MPa

36300 psi

Elongation at Break (in 200 mm)

20.0 %

20.0 %

Elongation at Break (in 50 mm)

23.0 %

23.0 %

Modulus of Elasticity

200 GPa

29000 ksi

Bulk Modulus (typical for steel)

140 GPa

20300 ksi

Poissons Ratio

0.260

0.260

Shear Modulus

79.3 GPa

11500 ksi



A36 I/H beam Application:
A36 carbon steel beams are used for support beams and columns in bridges, buildings and other structural applications that require riveting, bolting or welding to join the beams together or to other components.
