ASTM A355 P22 Steel Pipe Mechanical Tests Specified

ASTM A335 Pipe (ASME S/A335, Chorme-Moly) is a seamless ferritic Alloy-Steel Pipe for high temperature service. Molybdenum increases the strength of ASTM A355 P22 steel as well as the elastic limit, resistance to wear, impact qualities, and hardenability.

ASTM A335 P22 Chemical Compositions (%)

Compositions	Data
UNS Designation	K21590
Carbon	0.05-0.15
Manganese	0.30-0.60
Phosphorus (max.)	0.025
Sulfur (max.)	0.025
Silicon	0.50-1.00
Nickel	…
Chromium	1.90-2.60
Molybdenum	0.87-1.13
Other Elements	…

Mechanical properties for ASTM A335 P22

Properties	Data
Tensile strength, min, (MPa)	415 Mpa
Yield strength, min, (MPa)	205 Mpa
Elongation, min, (%), L/T	30/20

(Note: This is summarized information from ASME Specification A335. Please refer to the specific Standard or Specification or contact us for more details.)

Inspection and Test of ASTM A355 P22:

Chemical Composition Inspection, Mechanical Properties Test(Tensile Strength,Yield Strength, Elongation, Flaring, Flattening, Bending, Hardness, Impact Test), Surface and Dimension Test, No-destructive Test, Hydrostatic Test.

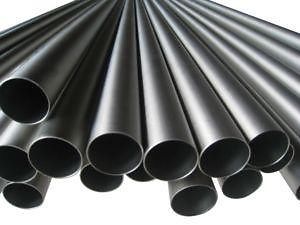

P22 Steel Pipe Specification:

Steel grade: ASTM A335 P22
Outer Dimensions: 19.05mm – 114.3mm
Wall Thickness: 2.0mm – 14 mm
Length: max 16000mm
We can supply any size based on customer's requirements.

Your requirements are our yardstick for success. KATALOR's service has already spread many countries in Europe, America, Southeast Asia, Middle East, South America, Africa, and so on. Our aim is to provide high quality products and outstanding service. Contact our ASTM A355 P22 Steel Pipe sales team freely if you have any needs.
